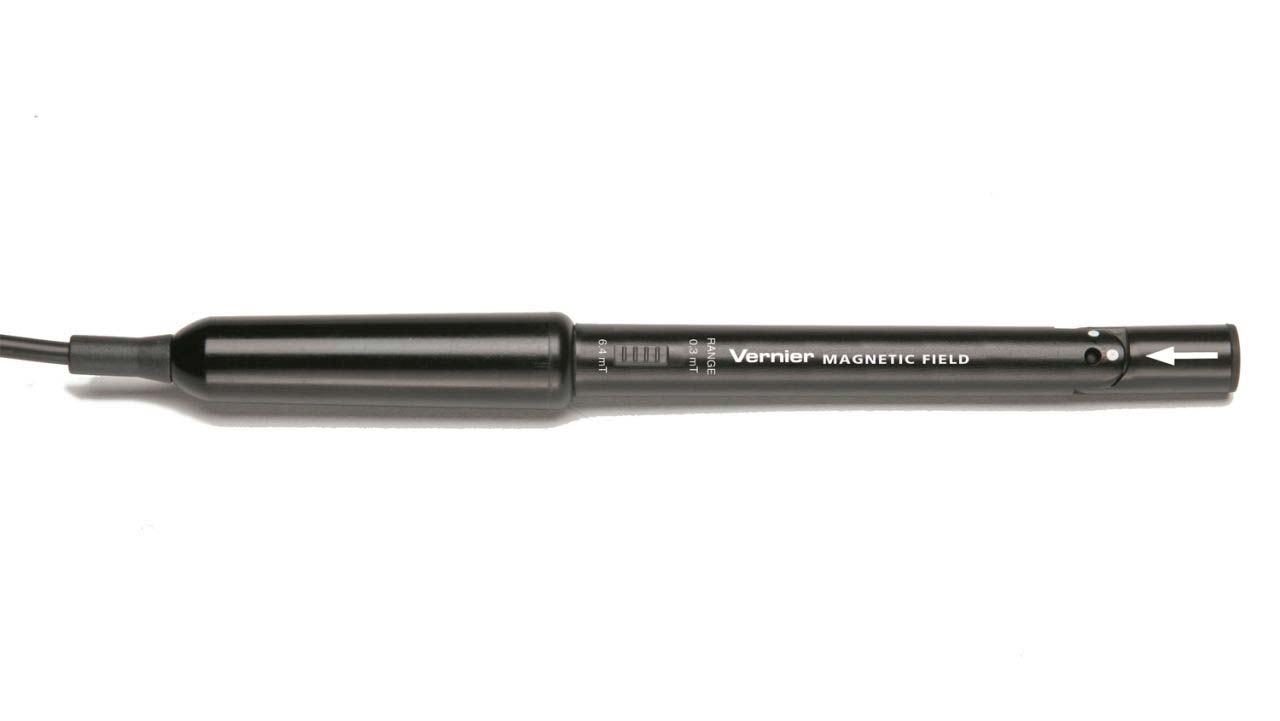

Vernier MGA-BTA Magnetic Field Sensor

This sensor uses a Hall effect transducer, and measures a vector component of the magnetic field near the sensor tip. It has two ranges, allowing for measurement of relatively strong magnetic fields around permanent magnets and electromagnets, as well as measurement of weak fields such as the Earth’s magnetic field. The articulated sensor tip allows you to measure both transverse and longitudinal magnetic fields.

Specifications
Resolution (+/- 0.32 mT range):
12-bit (LabQuest 2, LabQuest, LabQuest Mini, Go!Link, LabPro): 0.0002 mT
10-bit (CBL 2): 0.0008 mT
Resolution (+/- 6.4 mT range):
12-bit (LabQuest 2, LabQuest, LabQuest Mini, Go!Link, LabPro): 0.004 mT
10-bit (CBL 2): 0.016 mT

What’s Included
Vernier Magnetic Field Sensor
User manual

Sensor Requirements
The Magnetic Field Sensor requires a compatible interface and software to collect data. Interface and software sold separately.

The Magnetic Field Sensor is compatible with these interfaces:
LabQuest 2
LabQuest
LabQuest Mini
Go!Link
SensorDAQ
NXT Sensor Adapter
LabPro
Vernier EasyLink
CBL 2
TI-Nspire Lab Cradle
