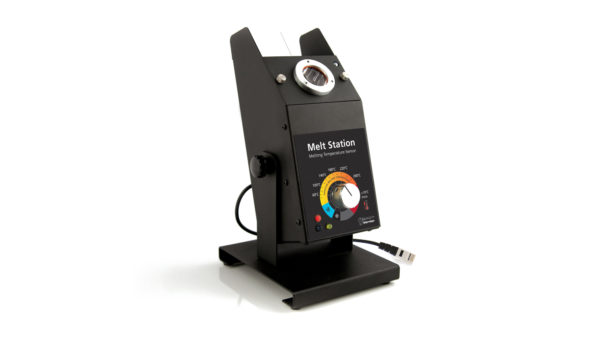

Vernier MLT-BTA Melt Station

Connect the Melt Station to a Vernier interface to measure the melting temperature of solid substances.

Accurate results using built-in RTD over a range of 30°C to 260°C
High-quality 6X viewing lens for clear observation of the samples
Innovative, adjustable tilt allows for optimal viewing angle
Cooling fan reduces time between tests.

Specifications
Dimensions:
Base: 13 cm x 15 cm x 1.5 cm
Body: 9 cm x 9 cm x 24 cm
Weight: 1.0 kg (2.2 lbs)
Resolution: 0.10°C
Accuracy: ± 0.31 + 0.0006T, where T is the temperature in Celsius
Safety shut down: The heating block is automatically powered down after approximately sixty minutes of heating.
Capillary tubes: 1.4–1.8 mm outside diameter, 100 mm length
Capillary tube slots: 3
Viewing Lens: 27 mm diameter (functional), 30 mm (actual)
Lighting of capillary slots: 3 white LEDs
Lighting of Control Dial:
Red LED (indicates heating mode)
Blue LED (indicates cooling mode with cooling fan running)
Yellow LED (safety shut off activated)

What’s Included
Vernier Melt Station
100 standard capillary tubes
Power supply

Sensor Requirements
The Melt Station requires a compatible interface and software to collect data.
Interface and software sold separately.

Compatible Interfaces
The Melt Station is compatible with these interfaces:
LabQuest 3
LabQuest 2
LabQuest
LabQuest Mini
SensorDAQ
Vernier myDaq Adapter
Go!Link
EasyLink
LabPro
CBL 2
TI-Nspire Lab Cradle
